Description

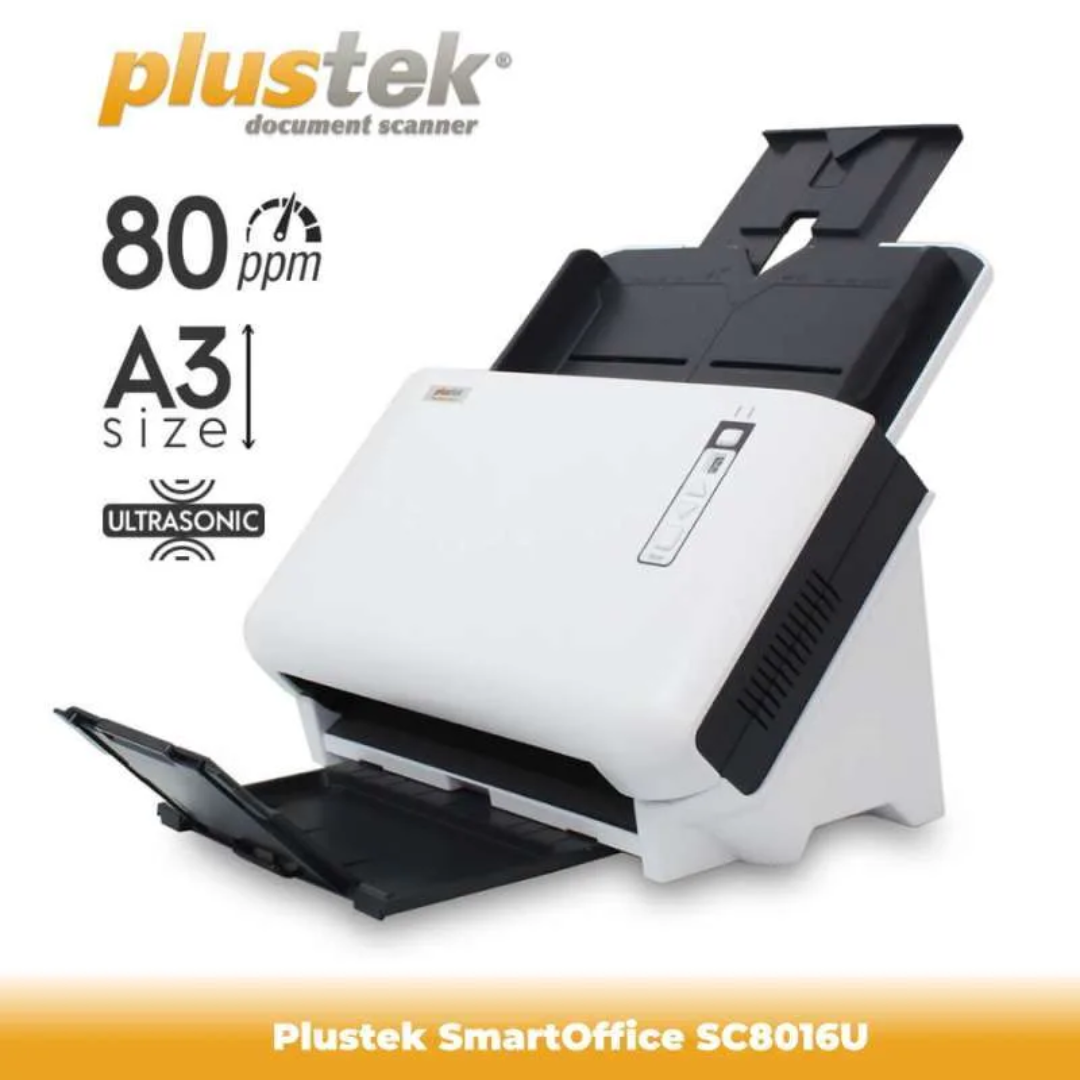

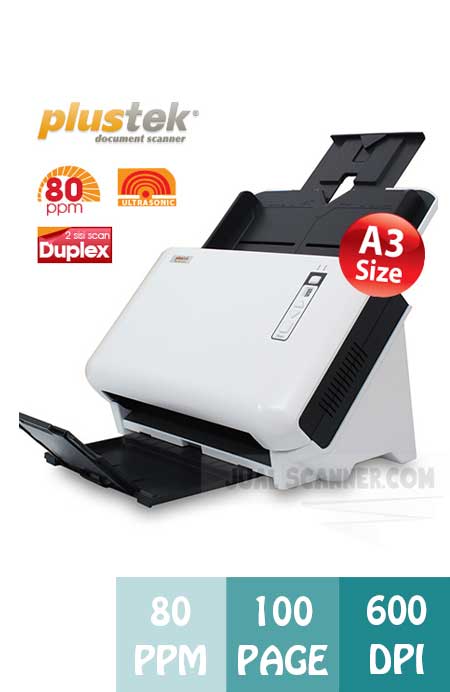

Scanner ADF ukuran A3 ini adalah Scanner Otomatis yang didesain khusus untuk menscan dokumen yang berukuran besar (A3) dalam jumlah banyak.
Dengan kecepatan 80 lembar/menit (Grayscale dengan resolusi 300 dpi, A4-Landscape) dan dilengkapi dgn 2 mata sensor CCD yang membuat anda mampu men-scan dokumen bolak balik sekaligus.
Scanner Otomatis ini dapat menampung 100 lembar kertas sekaligus, hasil scan dapat langsung dijadikan 1 file PDF cukup dengan mengaktifkan fitur “continuous scanning” anda dapat menscan lebih dari 100 lembar yang langsung tersimpan dalam 1 file PDF. Sangat cocok untuk scan denah arsitektur bangunan, skema rancangan pabrik, desain rumah, dll.
Spesifikasi Produk:
| Type | Automatic Document Feeder (ADF) |
| Image Sensor | CCD Sensor x 2 |
| Optical Resolution | 600 dpi |
| Hardware Resolution | 600 x 600 dpi |
| ADF Capacity | 1. 100 sheets (A4/ Letter, 70 g/? or 18 Lbs), Max. thickness under 10 mm (0.4”) |
| 2. 50 sheets (A3, 70 g/? or 18 Lbs) | |
| 3. 20 sheets (Business Cards) | |
| 4. Plastic Card (Portrait Loading), Max. thickness under 1 mm, embossed cards can be scanned. | |
| Note: Maximum ADF capacity varies, depending upon paper weight. | |
| Scanning Speed ( ADF ) | 80 ppm/ 160 ipm (Grayscale/ B&W mode, 300 dpi, A4 Landscape) |
| 45 ppm/ 90 ipm (Color mode, 200 dpi, A4 Landscape) | |
| 30 ppm/ 60 ipm (Color mode, 300 dpi, A4 Landscape) | |
| Note: Results may vary depending upon your scanning application, computer processor and system memory. | |
| Scanning Area (W x L) | Max: 297 x 5080 mm (11.69” x 200”) |
| Min: 13.2 x 13.2 mm (0.52” x 0.52”) | |
| Acceptable Paper Sizes (W x L) | Max: 305 x 5080 mm (12” x 200”) |
| Min: 50.8 x 63.5 mm (2” x 2.5”) | |
| Acceptable Paper Weight (Thickness) | 40 to 220 g/? (10 to 58 Lbs) |
| Daily Duty Scan ( Sheets ) | 8,000 |
| Roller Lifetime (Scans) | 300,000 |
| Pad Lifetime (Scans) | 50,000 |
| Action Button | 4 Buttons: Up, Down, Scan, Standby |
| 9 function keys: all customizable. | |
| Power Supply | 24 Vdc/ 2.7 A |
| Interface | USB 2.0 |
| Net Weight | 9 Kgs (19.8 Lbs) |
| Dimensions (W x D x H) | 436 x 262 x 266 mm (17.16″ x 10.31″ x 10.47″) |
| Protocol | TWAIN Compliant |
| OS | Windows 2000 / XP / Vista / 7 / 8 |
| Hardware Requirements | Pentium IV 3.2 GHz processor |
| CD-ROM Driver | |
| One available USB Port (USB 2.0 recommended) | |
| 1GB RAM or higher recommended | |
| 800 MB free HDD space (1 GB or larger recommended) | |
| For longer documents/higher resolutions: Pentium IV, 3.2 GHz processor, 3 GB RAM | |
| Bundled Software | DocAcation, Presto! PageManager, Presto! BizCard, ABBYY FineReader, TWAIN Driver |
| Warranty | 3 Year |
